SL-380 BRAKE TESTER (4,000KG)

BRAKE TESTER
(Capacity 4,000KG)

Features

Product Advantages

*This brake tester is an excllent device of car maintenance repair workshop to test tire’s brake ability. To put four tires of car into two sets rollers, running and brake suddenly to test brake sensitivity and make driving absolute protection.

Picture	Description	Detailed description

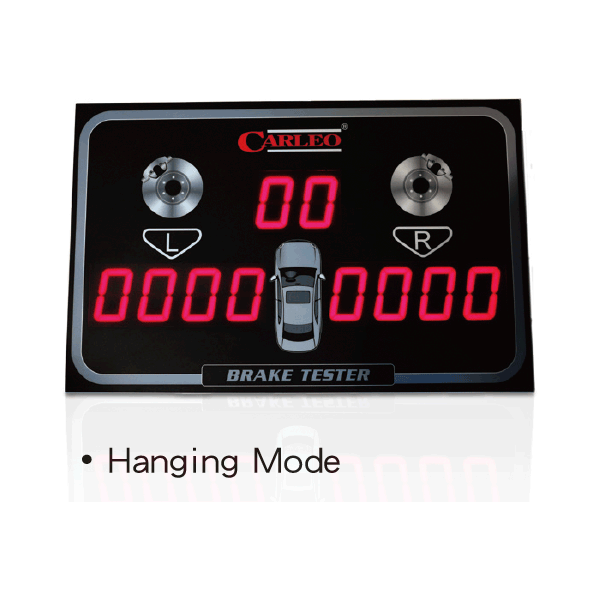

	Hanging Mode
	Standing Mode

Specification/Accessories

MODEL		SL-380
MAX.LOADING WEIGHT		4,000 KG
MIX.LOADING WEIGHT		120 KG
MAX.BRAKE FORCE (ONE WHEEL)	HIGH	1,000 KG
MAX.BRAKE FORCE (ONE WHEEL)	LOW	200 KG
MOTOR 3 PHASE 220 VOLTS		1(HP) x 2
AIR PRESSURE		6~10 Kg/cm²
ROLLER	DIAMETER	192 m/m
	LENGTH	780 m/m
	DISTANCE OF CENTER	410 m/m
	(R. P. M.)	10.45 RPM (60HZ)
DIMENATION	LENGTH (A)	2412 m/m
	WIDTH	830 m/m
	HEIGHT	550 m/m
TOTAL WEIGHT		1,015 KG
DISPLAY	MAX.TESTING SCOPE	0-1000
	DISPLAY EQUIPMENT	Digital
	MAX.TESTING SCOPE	AC220. 380. 415. 50/60HZ

Comparable

SL-300 SIDE SLIP TESTER ( 3,000KG)
