Wheel Alignment Car Lifts
Carleo -Wheel Alignment Car Lifts實績-SL-656ED WHEEL ALIGNMENT LIFT (Upper 4,000KG / Lower 5,500KG)

SL-656ED WHEEL ALIGNMENT LIFT (Upper 4,000KG / Lower 5,500KG)

WHEEL ALIGNMENT LIFT
(Upper 4,000KG / Lower 5,500KG)
Features



Product Advantages

˙Large capacity from sedan to mini van
˙5.5meters platform for long wheelbase vehicle
˙Safety locks device : steady and safety



Picture Description Detailed description

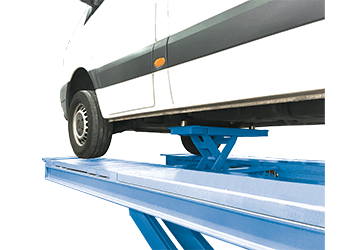

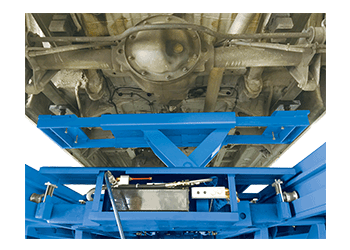

Option : Jacking Beam And Various Adapters

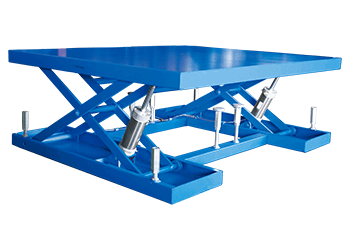

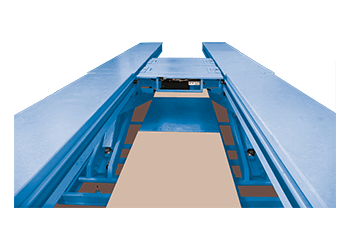

MODEL SL-173：Ground Platform When lift lift up to a certain height, the ground platform lift up automatically. (option)

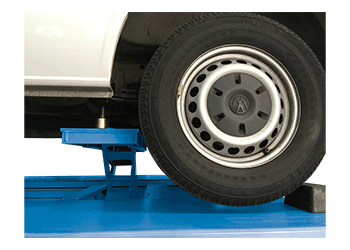

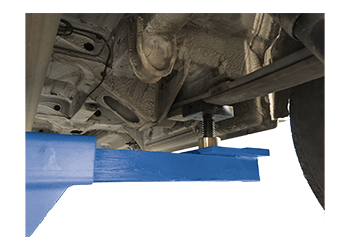

Various Adapters For Option Minimum height：176mm
Maximum height：237mm

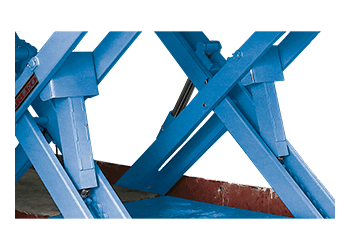

Safety Locks Device

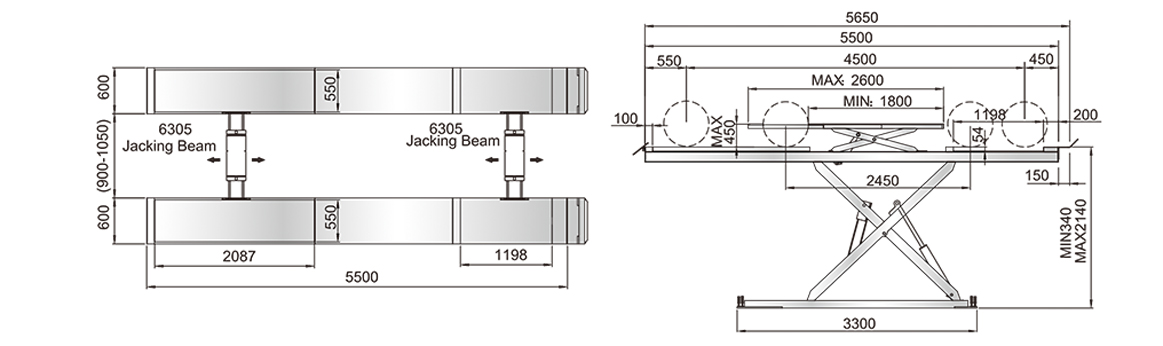

Specification/Accessories



MODEL MAX LOADING
WEIGHT 		LIFTING
HEIGHT 		HORSEPOWER & VOLTAGE AIR PRESSURE LIFTING TIME OPERATION CONTROL
SL-656ED Upper 4,000kg Upper 450m/m
1 Phase

3HP
 AC 220 50HZ
60HZ 		5~8 kg/cm2 Upper About 15 sec Hydraulic Electric
3Phase 3HP AC 220
AC 380
AC 415
Lower 5,000KG Lower 1800m/m Lower About 70 sec
SL-6305 X 2
 2,000KG 350m/m

-

- - - 6~8 kg/cm2 About 45 sec Hydraulic Air



Video
Back to the list
Wheel Alignment Car Lifts(SL-656ED WHEEL ALIGNMENT LIFT (Upper 4,000KG / Lower 5,500KG)) Supplier: 40+ Years of MIT Excellence | Carleo
Carleo is a premier Wheel Alignment Car Lifts(SL-656ED WHEEL ALIGNMENT LIFT (Upper 4,000KG / Lower 5,500KG)) manufacturer from Taiwan with 40+ years of expertise. We provide EN 1493 certified, high-performance lifting solutions for global workshops. With 26,000 sqm factories, Carleo is your trusted global supplier and company since 1977.
Leading Wheel Alignment Car Lifts Manufacturer in Taiwan : Founded in 1977, Carleo (Ming Lurn) has pioneered the industry with over 40 years of deep-seated expertise. As a specialized Wheel Alignment Car Lifts(SL-656ED WHEEL ALIGNMENT LIFT (Upper 4,000KG / Lower 5,500KG)) manufacturer, we adhere to the European EN 1493 safety standard and ISO 9001 quality management, ensuring superior safety and high-performance solutions.
Advanced Automated Production & Global Support : Leveraging robotic automated welding, Carleo delivers impeccable quality across 26,000 square meters of production space in Taiwan and Thailand. Our Wheel Alignment Car Lifts (SL-656ED WHEEL ALIGNMENT LIFT (Upper 4,000KG / Lower 5,500KG)) are highly recommended by top-tier automakers. We are dedicated to being your reliable, long-term partner for innovative lifting and automated solutions.
