Accesssories
Carleo -Accesssories實績-ACCESSORIES

ACCESSORIES

SPECIFICATION
Features

Accessories Specification (Unit: mm)

Picture Part No. Description Specification Suitable Model
20203792 Rubber Pad 20203792 Rubber Pad L111 × W80 × H28 SL-35TW, SL-35SBW, SL-303, SL-301SBW/303SBW, SL-8501H,SL-303SBWN
20203103 Adapter Combination 20203103 Adapter (Standard) MIN 41
MAX 76 		SL-35TW, SL-35SBW, SL-303, SL-301SBW/303SBW, SL-8501H
850127 Adapter Combination 850127 Adapter Combination Min 80
Max 112 		SL-8501H
63033241 Rubber Pad 63033241 Rubber Pad L113 × W92 × H19 SL-35TW, SL-35SBW, SL-303, SL-562L
20203703 Adapter 20203703 Adapter (Standard) Min 95.5
Max 170.5 		SL-35TW, SL-35SBW, SL-303, SL-301SBW/303SBW,SL-303SBWN
20203603 Adapter Combination 20203603 Adapter Combination Min 195.5
Max 355.5 		SL-35TW, SL-35SBW, SL-303, SL-301SBW/303SBW,SL-303SBWN
R56107230 Rubber Pad R56107230 Rubber Pad Ø120× 11.5 T
90° 		SL-561E, SL-568SA-35, SL-568SA-40
S56805 Round Adapter Combination S56805 Round Adapter Combination 40.5L SL -568SA-35, SL-568SA-40

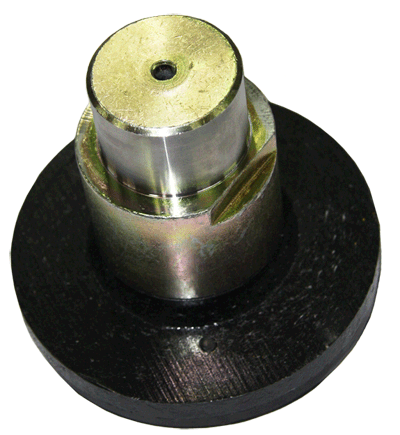

E56112 Adapter Combination E56112 Adapter Combination 76.5L SL-568SA-35, SL-568SA-40,
SL -561E

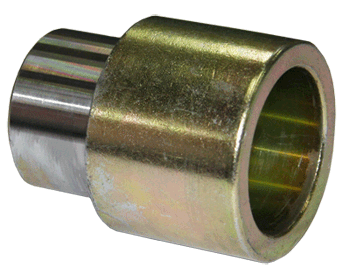

5610725F Adapter Shaft 56107251E Adapter Shaft 45L SL -568SA-35,SL-568SA-40,
SL-561E
E56111 Adapter Combination E56111 Adapter Combination 31.5L SL-561E
770111 Rubber Pad 770111 Rubber Pad L255 × W150 × H120 SL-640, SL-640H, SL-650, SL-660, SL-6510
95002S Extension Pipe 95002S Extension Pipe for Adapter (Low)
(1 PC) 		H50 SL-35TW, SL-35SBW, SL-38SBW, SL-303, SL-301SBW/303SBW, SL-303SBWN
95001L Extension Pipe 95001L Extension Pipe for Adapter (High)
(1 PC) 		H150 SL-35TW, SL-35SBW, SL-38SBW, SL-303, SL-301SBW/303SBW, SL-303SBWN
20103031-1 Rubber Pad 20103031-1 Rubber Pad L120 × W80 × H30 SL-568SA-35, SL-568SA-40, SL-556SA-45, SL-6305-2, SL-6305-3
S56827 Adapter Combination Low S56827 Adapter Combination (Low) Min 50.5
Max 77 		SL-568SA-35, SL-568SA-40, SL-556SA-45, SL-6305-2, SL-6305-3
S56822 Adapter Combination Medium S56822 Adapter Combination (Medium) Min 75
Max 136 		SL-568SA-35, SL-568SA-40, SL-556SA-45, SL-6305-2, SL-6305-3
S56803 Adapter Combination High S56803 Adapter Combination (High) Min 176
Max  237 		SL-568SA-35, SL-568SA-40, SL-556SA-45, SL-6305-2, SL-6305-3

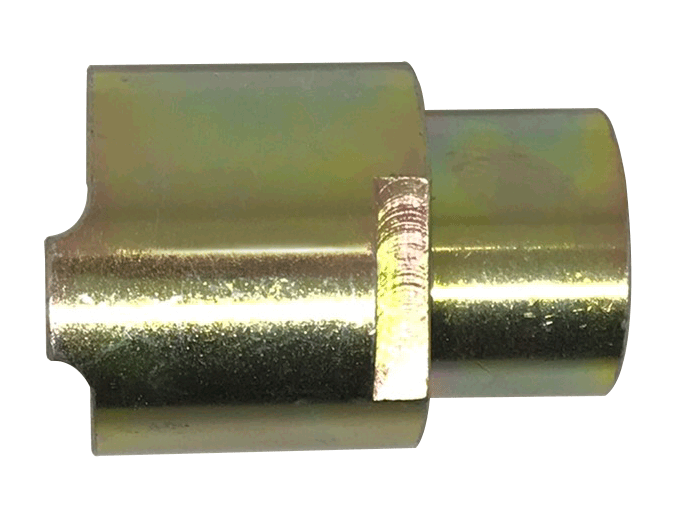

S56810070 Adapter Shaft S56810070 Adapter Shaft Ø60 × 44.8 × 86L SL-568SA-35,SL-568SA-40, SL-556SA-45,SL-6305-2, SL-6305-3

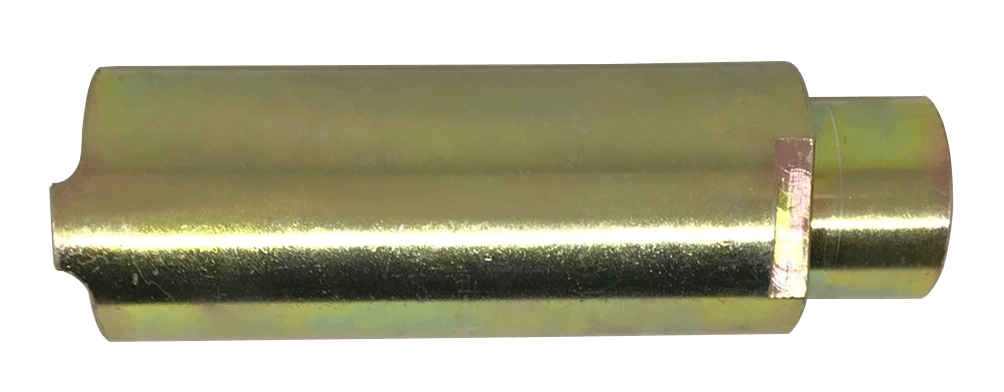

S56810080 Adapter Shaft S56810080 Adapter Shaft Ø60 × 44 × 186L SL-568SA-35,SL-568SA-40, SL-556SA-45,SL-6305-2, SL-6305-3
56128 Adapter Combination Low 56128 Adapter Combination (Low) H31.5 SL-561, SL-556S
56127 Adapter Combination Medium 56127 Adapter Combination (Medium) Min 100
Max 130 		SL-561, SL-556S
56126 Adapter Combination High 56126 Adapter Combination (High) Min 130
Max 196 		SL-561, SL-556S
770026 Rubber Pad High 770026 Rubber Pad (High) H100 For all scissor lift
770020 Rubber Pad Medium 770020 Rubber Pad (Medium) H55 For all scissor lift
770018 Rubber Pad Low 770018 Rubber Pad (Low) H30 For all scissor lift
770035 Rubber Pad Standard 770035 Rubber Pad (Standard) H85 For all scissor lift
